Description
Laser Aiming Module Made In South-Korea

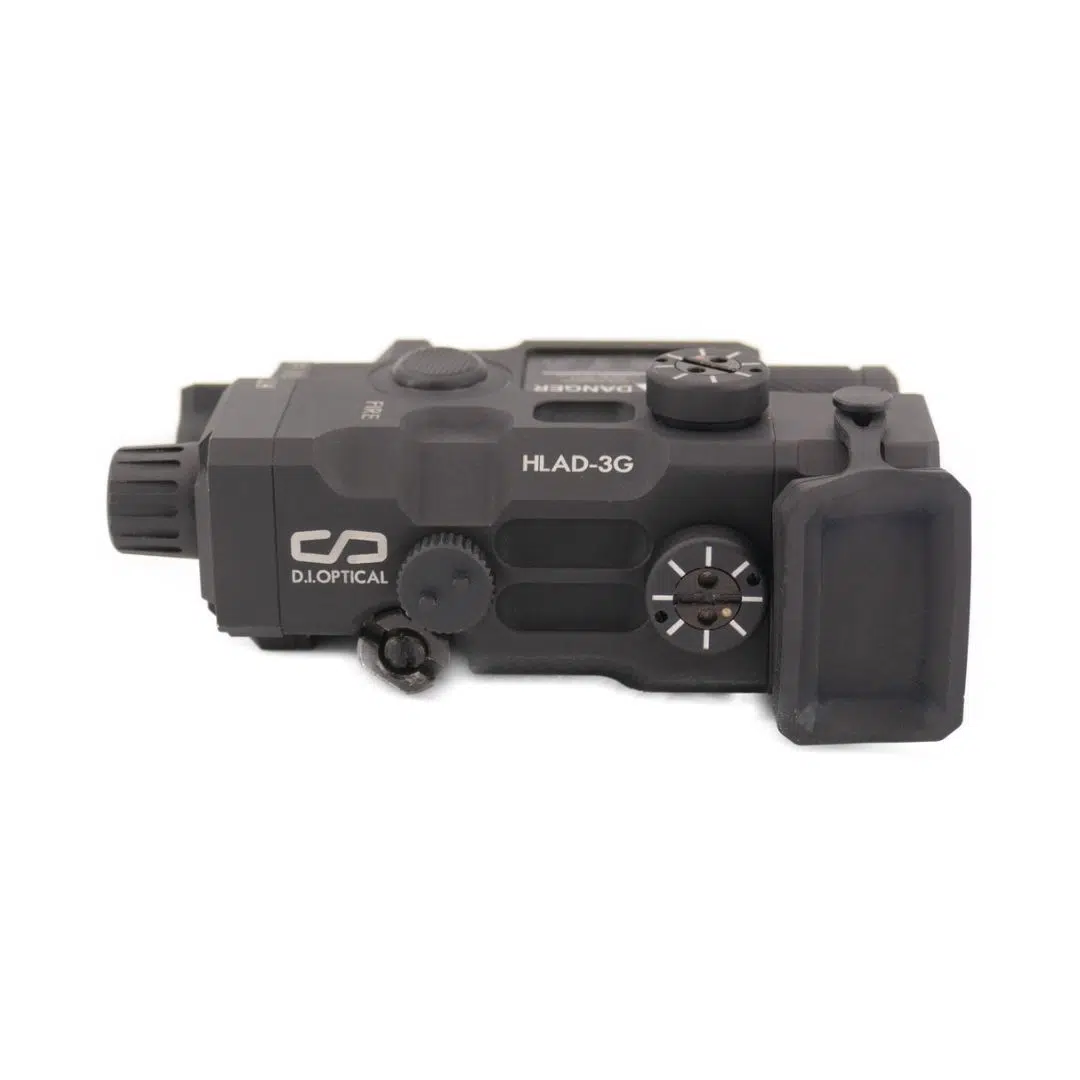

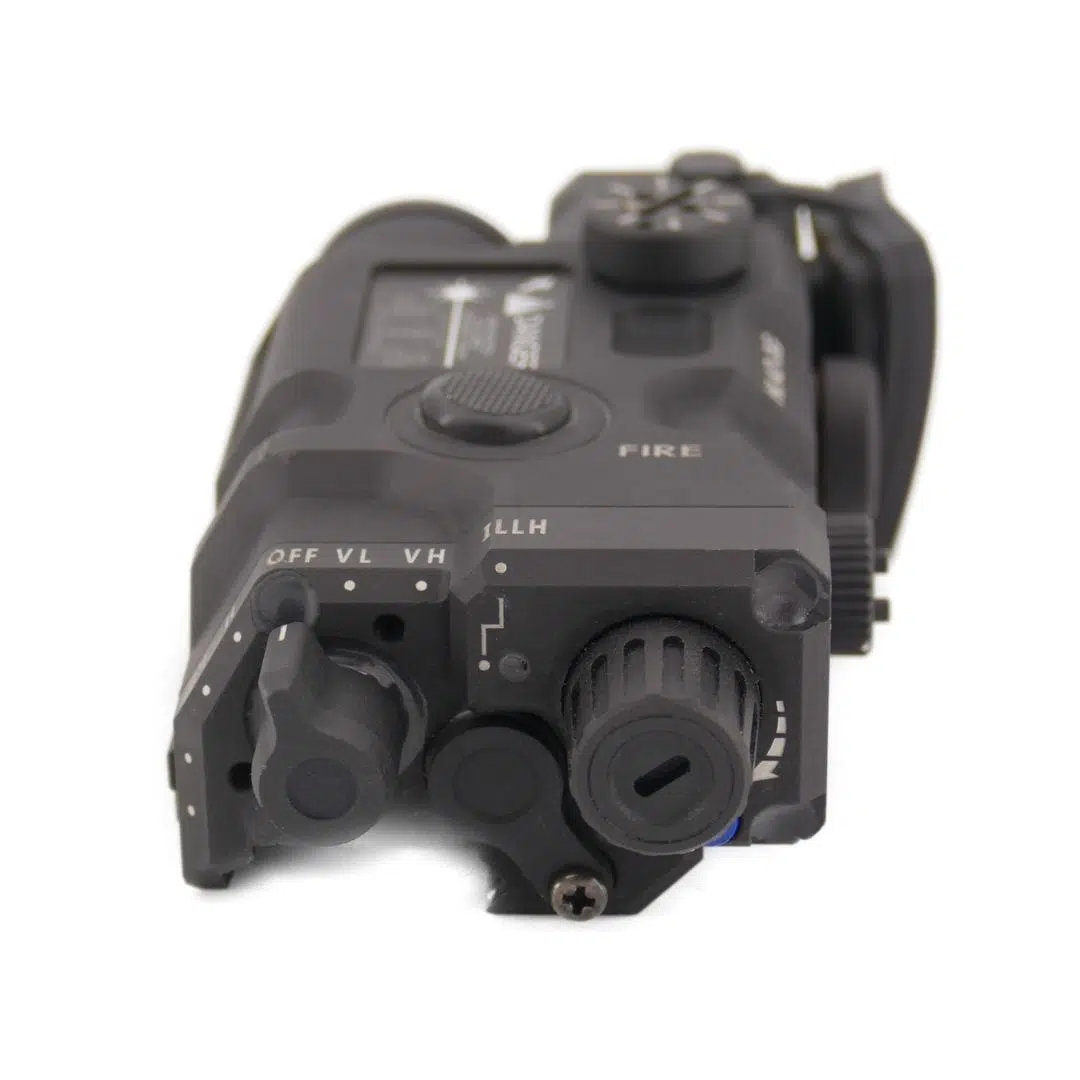

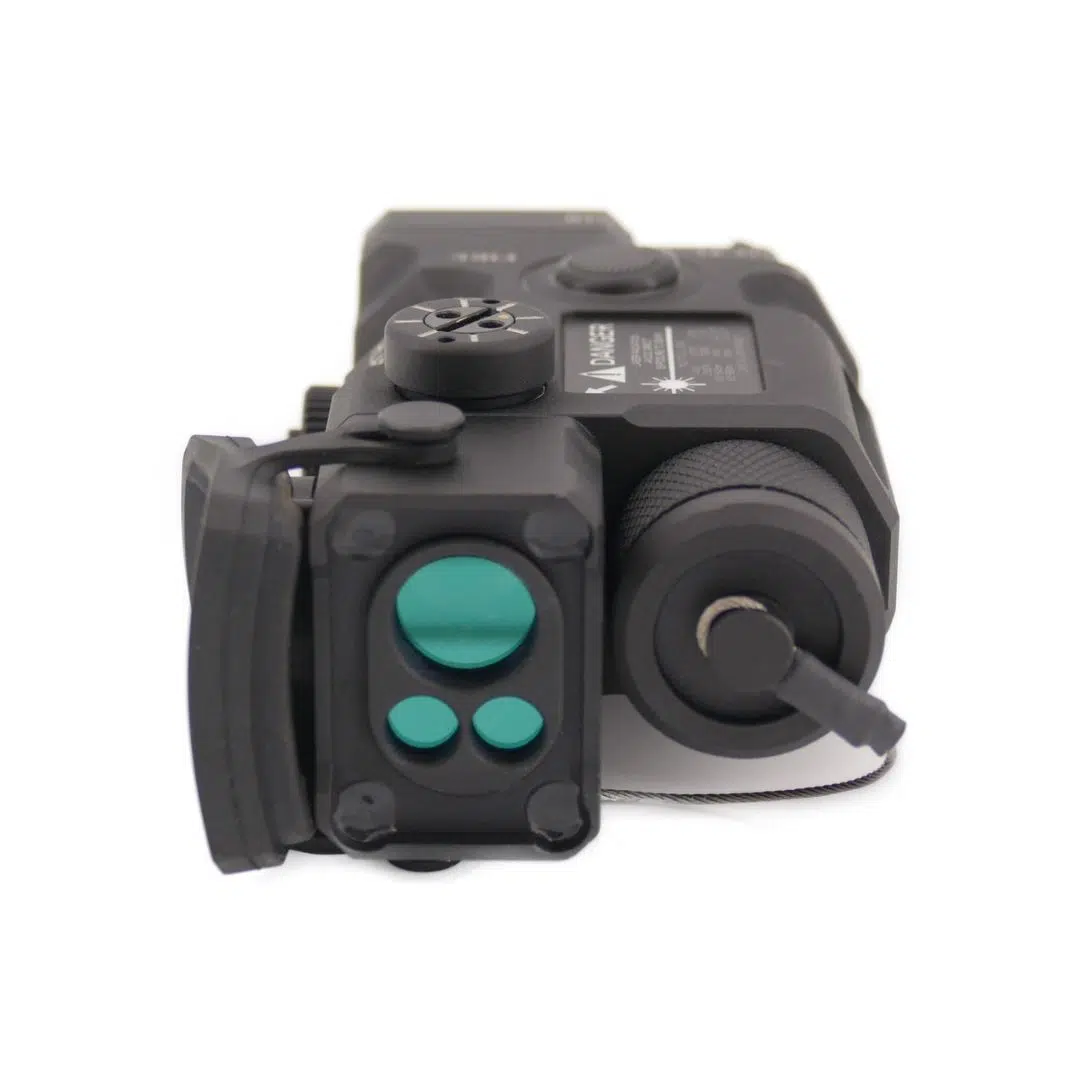

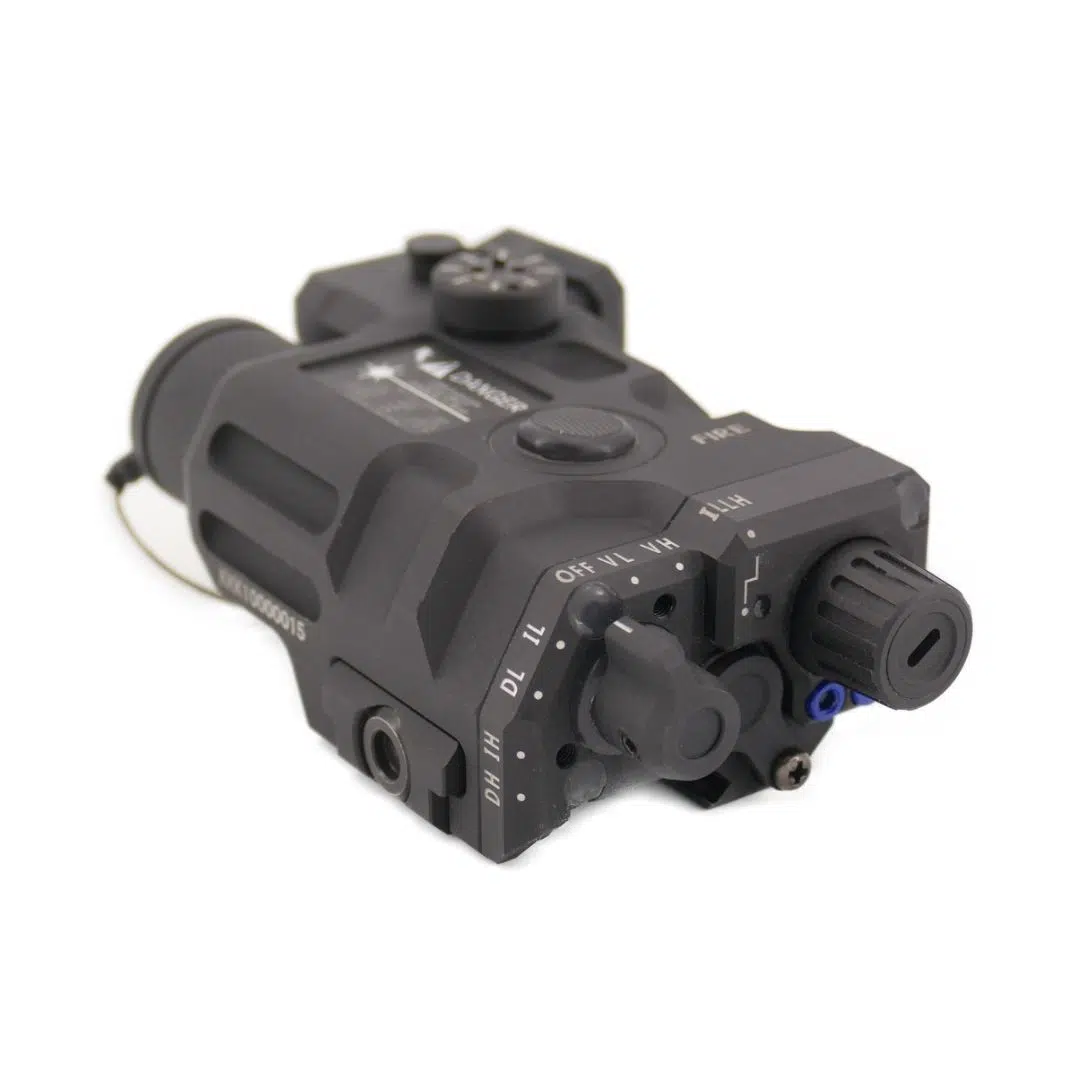

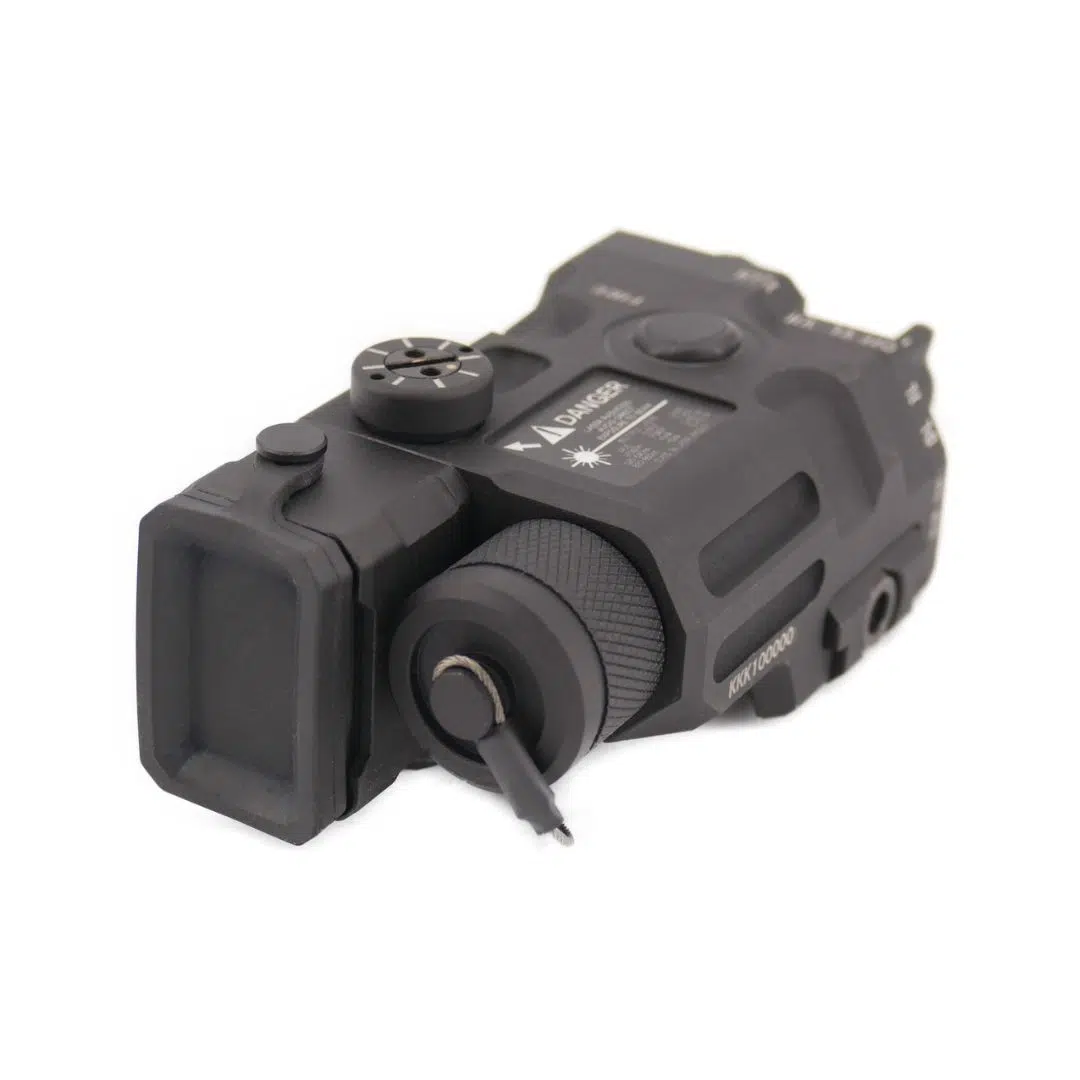

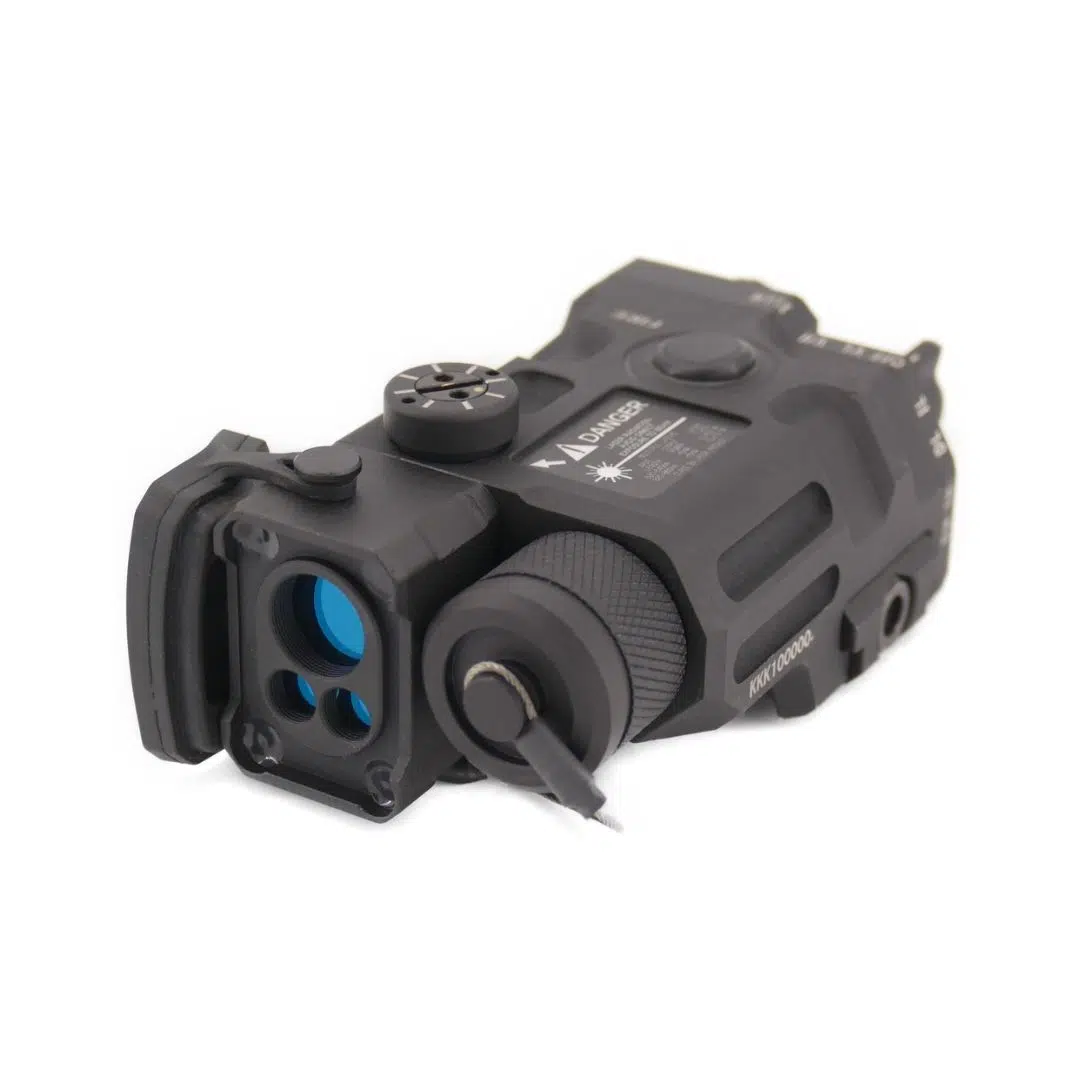

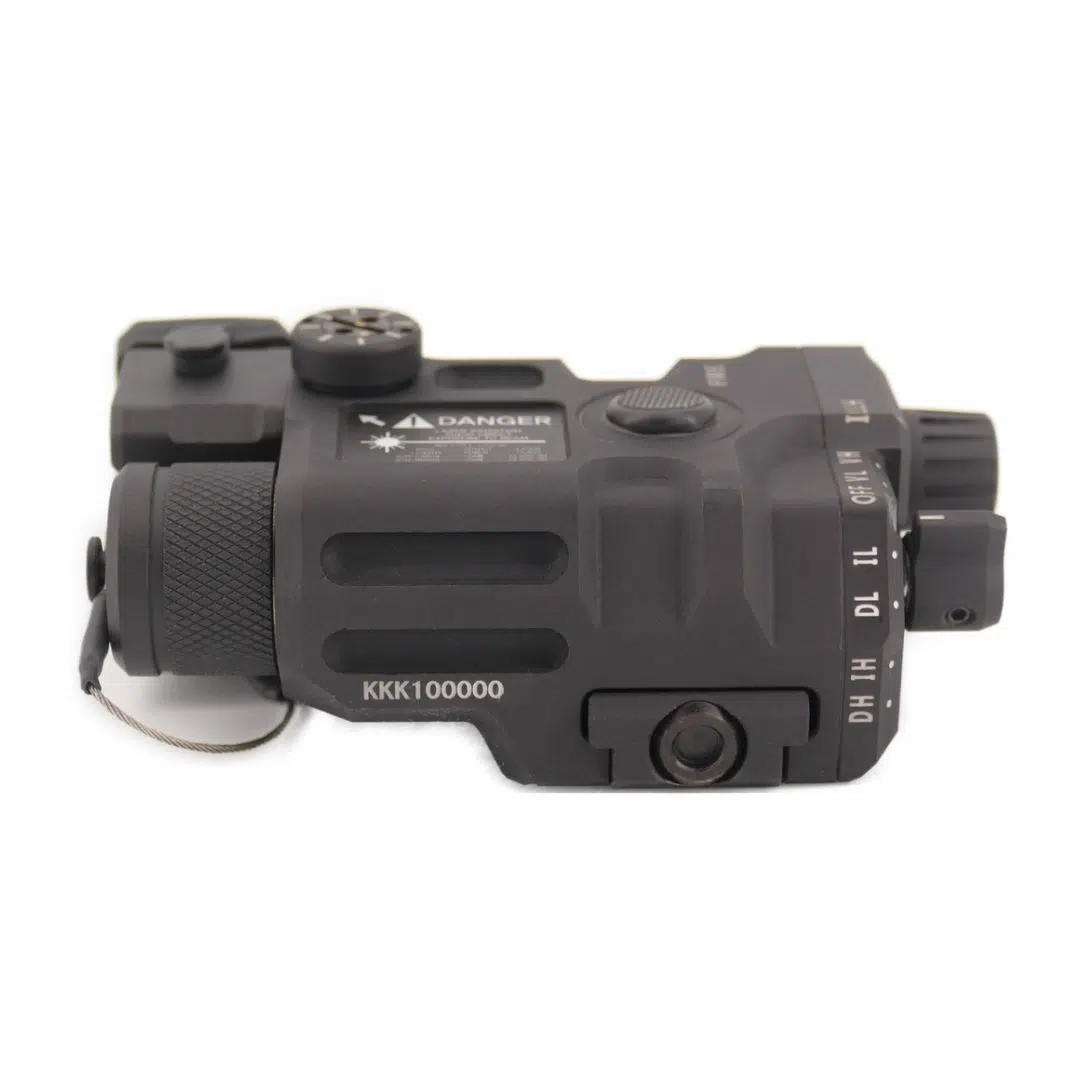

The HLAD-3G Laser, used by many international SOF units, features a 5mW visible green laser for quick threat identification in both daylight and low light conditions. It also includes a infrared (IR) aiming laser and a adjustable IR illuminator for tactical night operations. It meets the Mil Standard-810G and is ESD compliant.

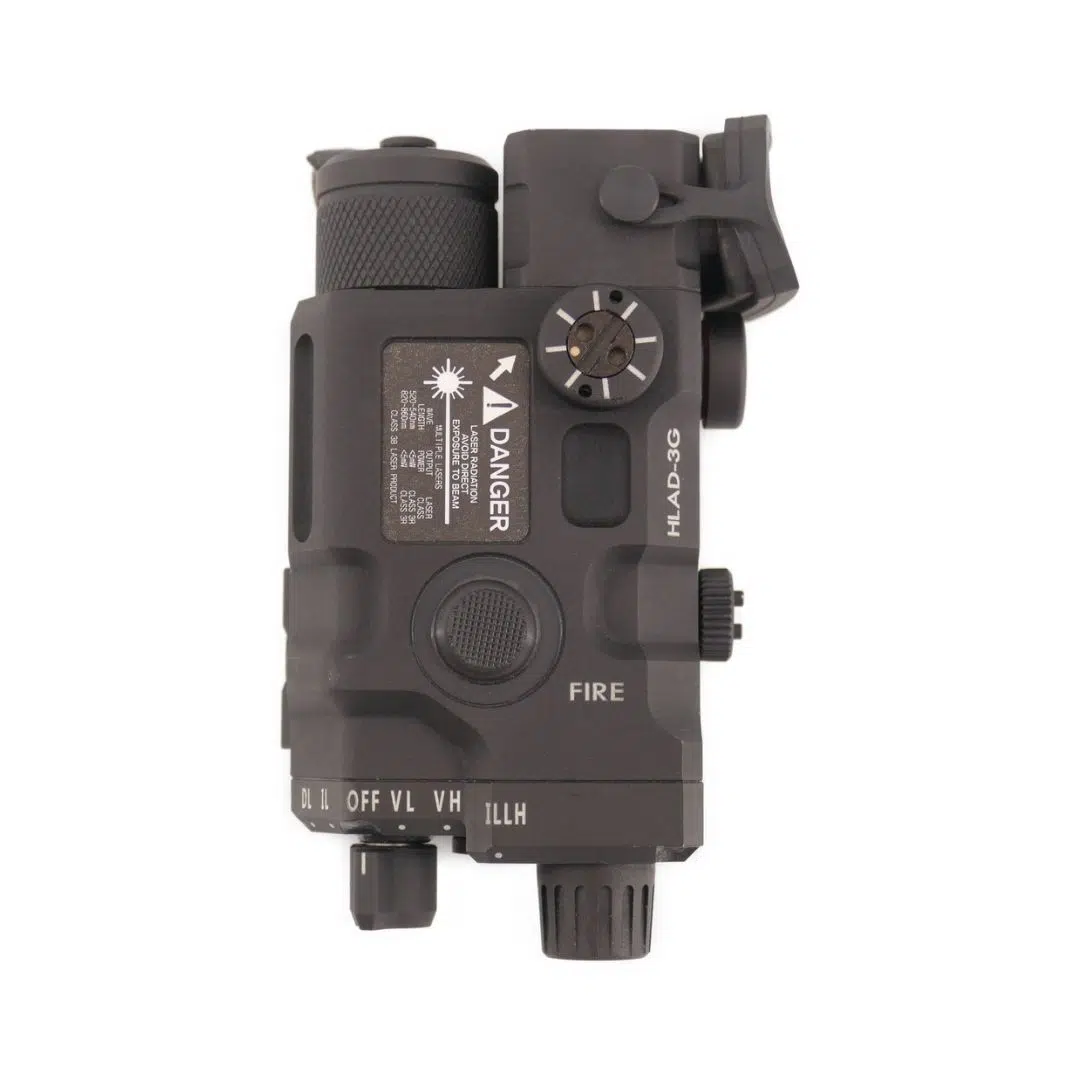

The device is equipped with a standard NATO/Crane plug, allowing compatibility with any switch or button available on the market. Designed for the civilian and law enforcement sectors, the HLAD-3G can be activated using the included remote switch or the built-in “FIRE” button located on the top of the housing for easy access. It is powered by a standard CR123 battery.
In the Box
- HLAD-3G
- Zeroing Tool
- Zeroing Key
- User Manual
- Cleaning Cloth
- Push To Toggle Remote Switch
- 1x CR123A Battery

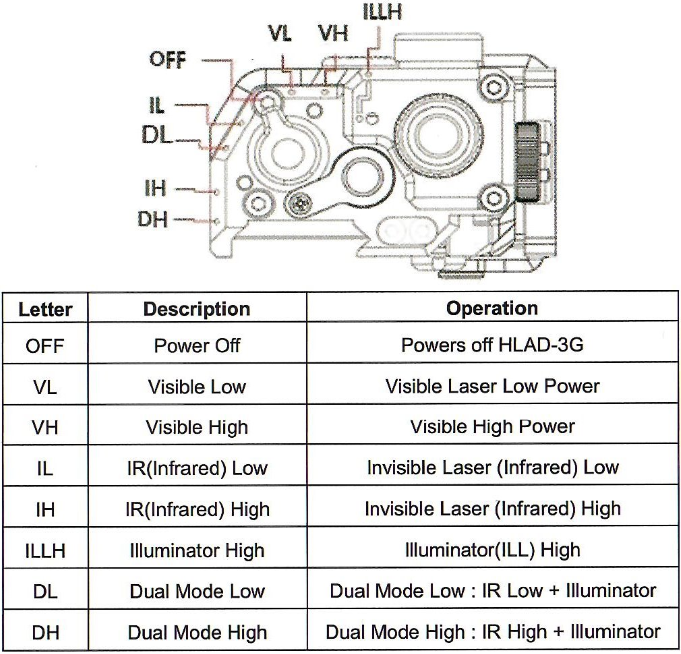

Mode Selection
| ELECTRONIC DATA | |
|---|---|
| Power Source | Battery |
| Battery Type | CR123A |
| Battery Life (Hours) | 6h (Dual Mode High) |
| Brightness Setting | Low & High |
| PHYSICAL PARAMETERS | |||
|---|---|---|---|
| Dimensions | 104x58x42mm | ||
| Weight With Battery | 250g | ||
| MECHANICAL DATA | |
|---|---|
| Housing Material | Anodized Aircraft Aluminum |
| Adjustment per Click | 0.25 MOA |
| ENVIRONMENTAL PARAMETERS | |
|---|---|
| Storage Temperature | -20℃~ 60℃ |
| Working Temperature | -20℃~ 60℃ |
| Waterproof | IP68 |
| Tested | Mil-810G |
| LASER PARAMETERS | ||
|---|---|---|
| Laser & Illuminator | Dual Laser & Dual Illuminator | |
| IR Illuminator Class | Class 3R | |
| IR Illuminator Output | 5mw | |
| IR Pointer Class | Class 1 | |
| IR Pointer Output | 0.7mW (high) | |
| Visible Laser Class | 3R | |
| Visible Laser Output | 0.7 mW (low) 5mW (high) | |
